PLATFORM BASE through industrial security and integrated management

ICT small digital lock system

PLATFORMBASE DIGITAL LOCK

Using and managing all locking devices with one key

Digital Lock

  • Digital lock difficult to illegally open and close
  • No battery
  • Resistant to power outage, electric shock or external environment
  • Several keys are used for one digital lock
  • A use history is stored.
  • The line-up of various locks is available.
  • Digital cylinder using the motor drive method, not the solenoid method

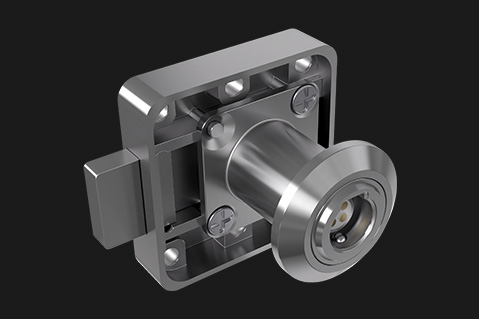

Digital Rim Lock

Applications
furniture, lockers,
cabinets etc.
Weight(g)
93.8
Lock Housing
Zinc Die-casting (Ni Plating Finish)
Latch/Shackle/CAM
Zinc Die-casting (Ni Plating Finish)
Open Position
180°

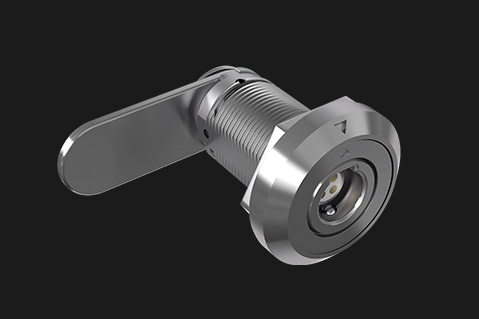

Digital Cam Lock

Applications
cabinets, vending machines,
ATM/CDs, mailboxes etc
Weight(g)
72.0
Lock Housing
Zinc Die- casting(Ni Plating Finish)
Latch/Shackle/CAM
SUS304 2.0t (Optional)
Open Position
90°/180°

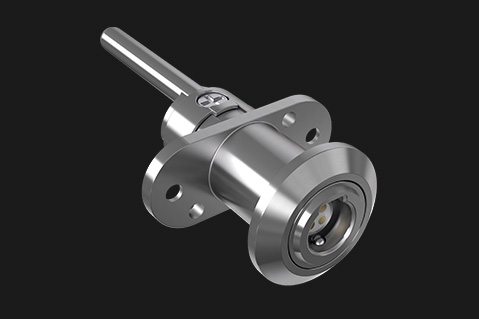

Digital Drawer Lock

Applications
furniture, locking drawers etc,
Weight(g)
68.6
Lock Housing
Zinc Die- casting(Ni Plating Finish)
Latch/Shackle/CAM
Zinc Die- casting(Ni Plating Finish)
Open Position
180°

Digital Pad Lock_Nomal

Applications
containers, military applications,
storage lockers, tool boxes etc
Weight(g)
500
Lock Housing
Stainless Steel
Latch/Shackle/CAM
SUS304 Diameter 8 mm
Open Position
90°

Digital Pad Lock_ShackleProtect

Applications
containers, military applications,
storage lockers, tool boxes etc
Weight(g)
600
Lock Housing
Stainless Steel
Latch/Shackle/CAM
SUS304 Diameter 8 mm
Open Position
90°

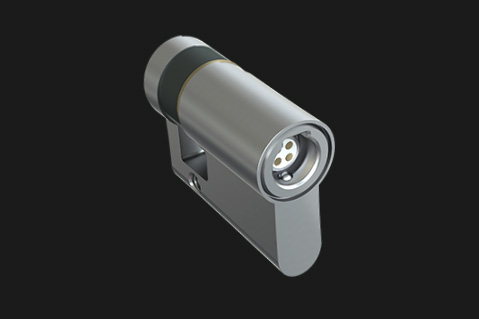

Euro_profile Lock Single

Applications
vending machines,cabinets,
network stations etc
Weight(g)
100
Lock Housing
Stainless Steel
Latch/Shackle/CAM
Carbon Steel Standard CAM(right-hand,left-hand)
Open Position
Multi-rotational(Single Type)

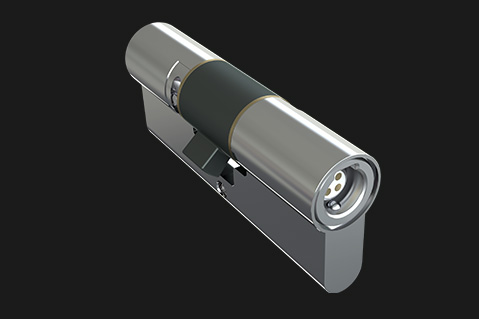

Euro_profile Lock Dual

Applications
vending machines,cabinets,
network stations etc
Weight(g)
100
Lock Housing
Stainless Steel
Latch/Shackle/CAM
Carbon Steel Standard CAM(right-hand,left-hand)
Open Position
Multi-rotational(Single Type)
